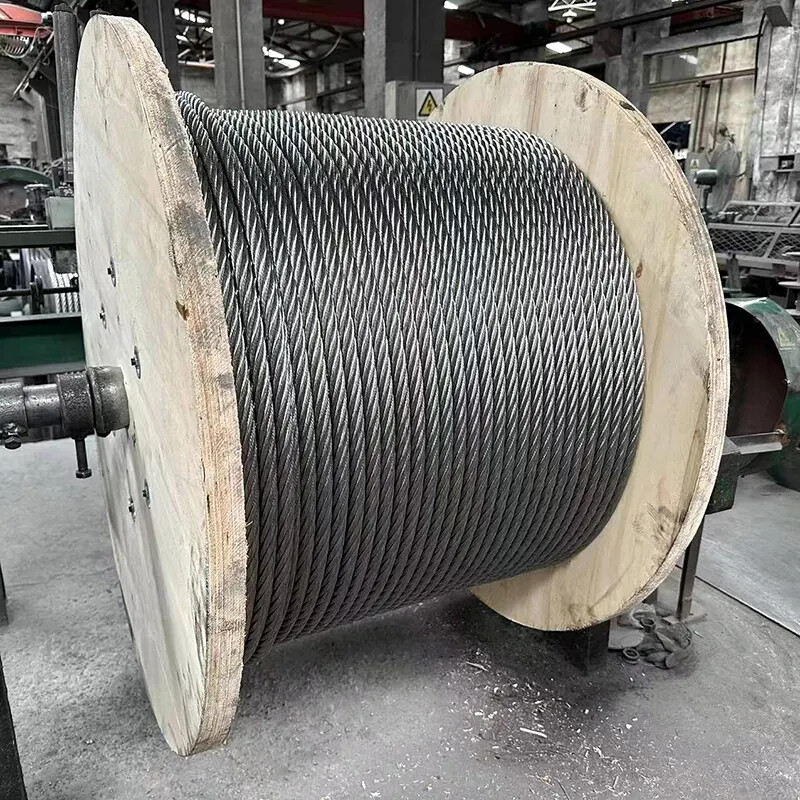

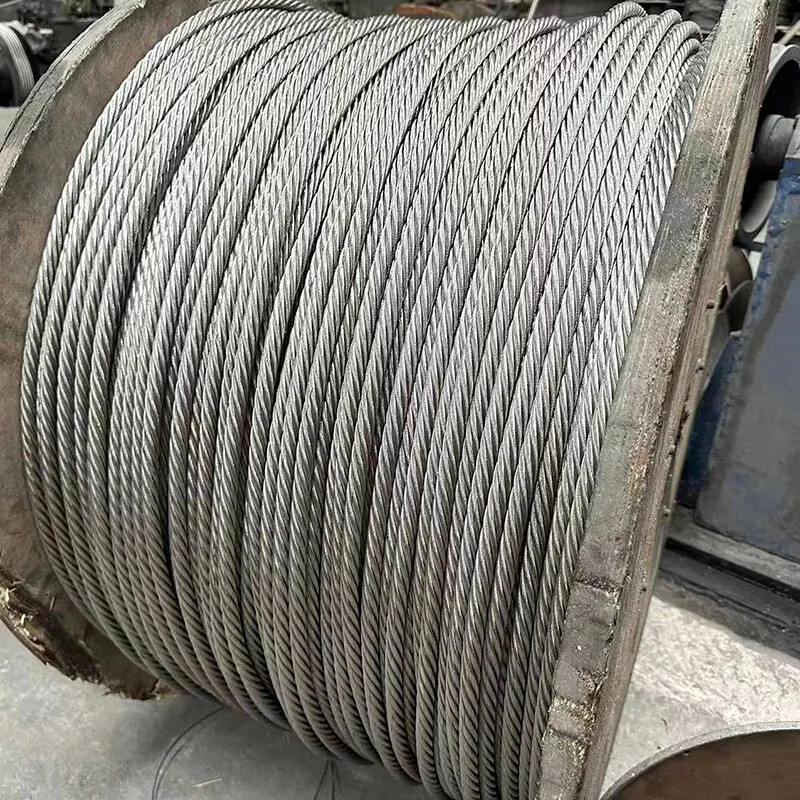

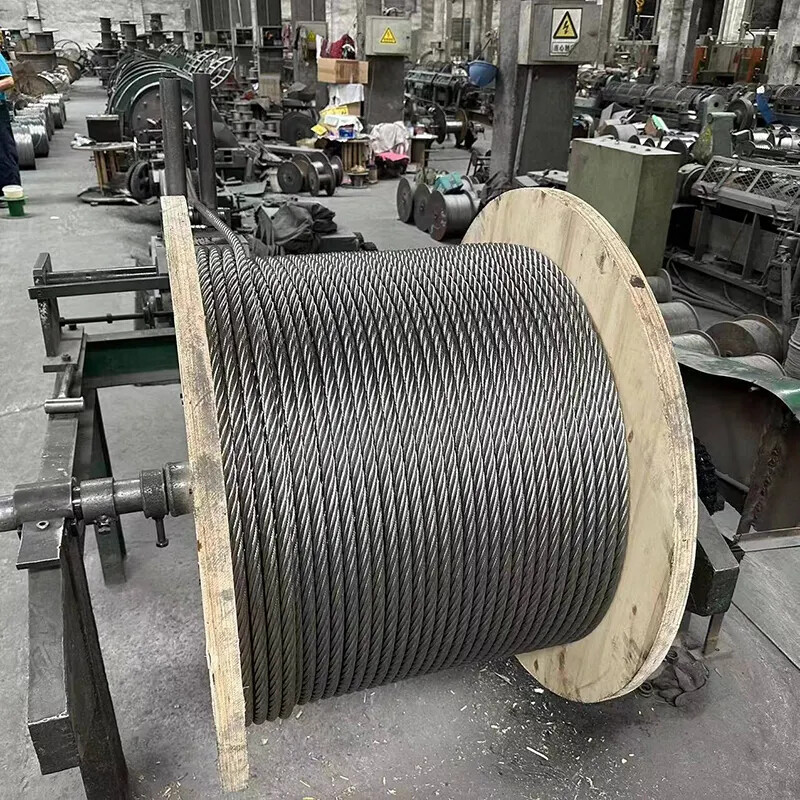

Wire Rope
The product is mainly used to produce prestressed concrete components of various structural shapes using various tensioning techniques. In the construction of large-scale railways, highway bridges, roof trusses, crane beams, industrial and civil prefabricated panels, wall panels, prestressed concrete TV towers, nuclear power plants, and other engineering projects. Produce two surface forms: smooth and spiral ribs. American standards ASTMA416, ASTMA421, British standard BS5896, Japanese standard JISG3536, international standard ISO6934, European standard EN10138
+8613020581687
+8613020581687
admin@bcjck.com
Contact Us

◉ Product Details

● Steel Wire for Prestressed Concrete:

The product is mainly used to produce prestressed concrete components of various structural shapes using various tensioning techniques. In the construction of large-scale railways, highway bridges, roof trusses, crane beams, industrial and civil prefabricated panels, wall panels, prestressed concrete TV towers, nuclear power plants, and other engineering projects. Produce two surface forms: smooth and spiral ribs. American standards ASTMA416, ASTMA421, British standard BS5896, Japanese standard JISG3536, international standard ISO6934, European standard EN10138

● Steel Strand for Prestressed Concrete :
This product is mainly used for reinforcing prestressed concrete structures. Such as large-span railway and highway bridges, crane beams, geotechnical anchoring engineering, multi-layer industrial factories, coal mines, sports venues, etc. Main executive standard: ASTM A416

● Unbonded Steel Strand for Prestressed Concrete:
Post tensioned unbonded prestressed steel strands are used for cast-in-place floor slabs, prefabricated beams with large loads, and other specially designed structures in large-span and large-span buildings. It has the characteristics of no need for reserved holes, no need for grouting, simple construction, material saving, and easy bending.

Technical parameters of steel strand - American Society for Testing and Materials standard (ASTM A416)

  Grade NominalDia.(mm)  Tolerance(mm) Nominalsectionarea(mm2) Mass Per1000m(Kg/1000m) MinimumBreakingload Min Load at 1%Extension(KN)  Lo≥610mm(%)The relaxation at 1000 h (Initialload to 70% of nominal max load)(r/%)
Low-RelaxationNormal-Relaxation
 250[1725]9.5  ±0.4051.640589.080.13.52.53.5
11.169.7548120.1108.1
12.7092.9730160.1144.1
15.20139.41094240.2216.2
 270[1860]9.53 +0.65-0.1554.84432102.392.1
11.1174.19582137.9124.1
12.7098.71775183.7165.1
15.24140.001102260.7234.6
