Welding rod
E7018 is the most popular mild steel welding rod. It is able to provide excellent welding performance and satisfactory weld metal can be obtained in all position welding. It is widely used in ordinary tensile strength mild steel structures especially suitable for intermittent welding to sheet steels and small work pieces as well as cosmetic welding with smooth and shiny appearance, e.g. top-hull of ships.
+8613020581687
+8613020581687
admin@bcjck.com
Contact Us

◉ Product Details

E7018 is the most popular mild steel welding rod. It is able to provide excellent welding performance and satisfactory weld metal can be obtained in all position welding. It is widely used in ordinary tensile strength mild steel structures especially suitable for intermittent welding to sheet steels and small work pieces as well as cosmetic welding with smooth and shiny appearance, e.g. top-hull of ships.

E6013 is a rutile type electrode. Can be welding by both AC & DC powersource and can be for all-position. lt have excellent welding performance asstable arc, little spatter, easy slag removal and reignition-ability etc.

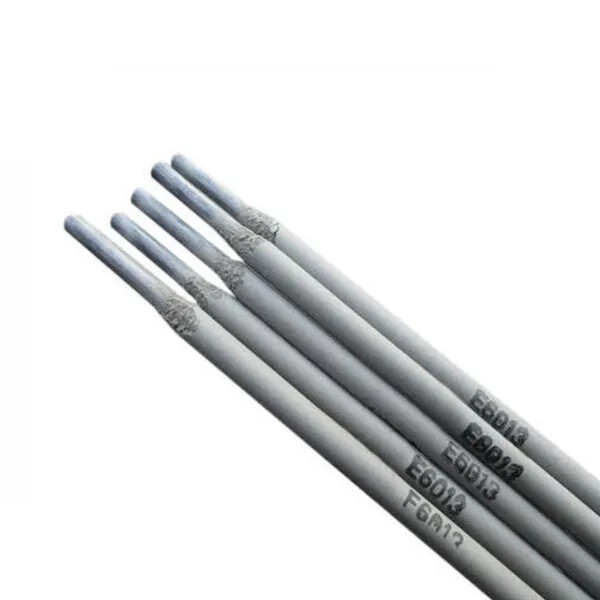

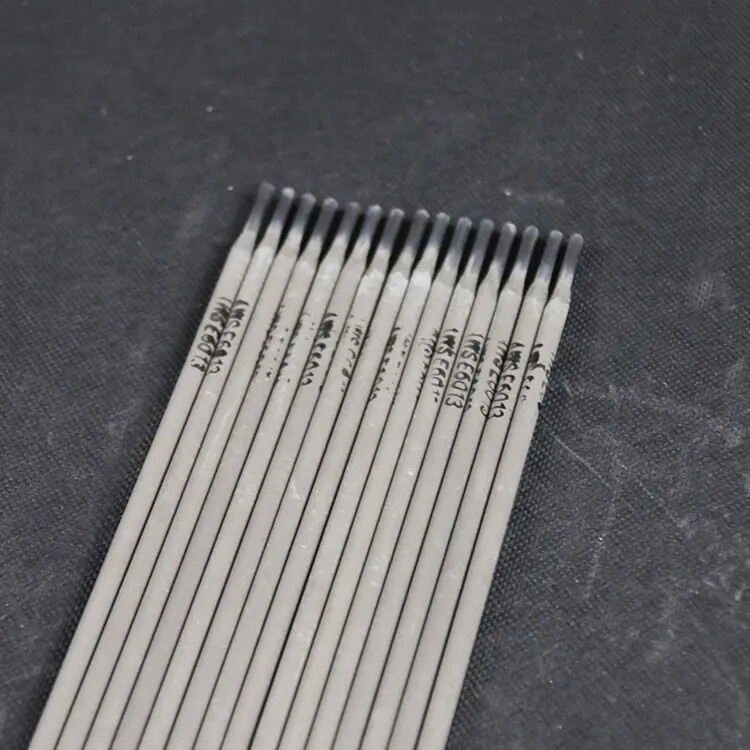

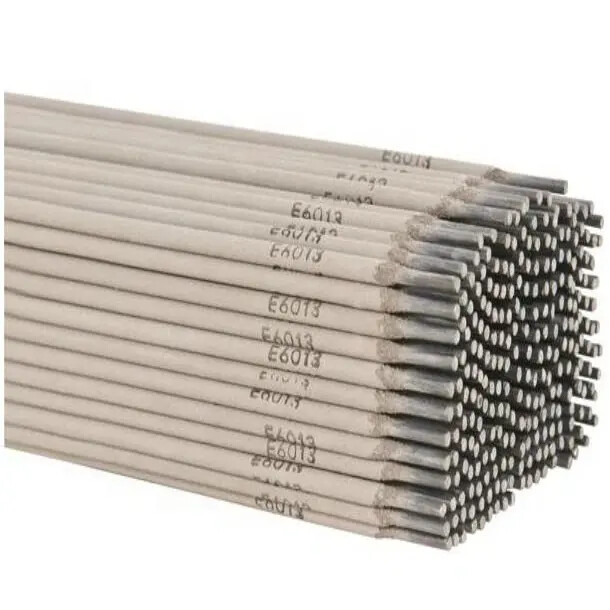

Carbon Steel Welding Electrode / Rod -- E6013

Chemical Composition of Deposited Metal(%)


CMnSiSPNiCrMov
Standard≤0.20≤1.20≤1.00≤0.035≤0.040≤0.30≤0.20≤0.30≤0.08



Mechanical Properties of Deposited Metal(AW)


Yield PointReH(Mpa)Tensile StrengthRm(Mpa)ElongationA4(%)Impact Value(J)
20.Coc
Standard≥306400-560≥22-≥47

 X-ray radiographic inspection: Grade ll



Size,Piece & Recommended Current(AC or DC+)

Size(mm)2.0 X 3002.5 X 3002.5 X 3503.2 X 3504.0X4004.0 X4505.0 X4005.0 X450
Piece(5kg)≈481≈303≈258≈157≈90≈80≈59≈52
Current(A)F,H35-6060-9060-9080-130150-190150-190180-250180-250
VOH30-5550-8050-8080-110130-170130-170----
