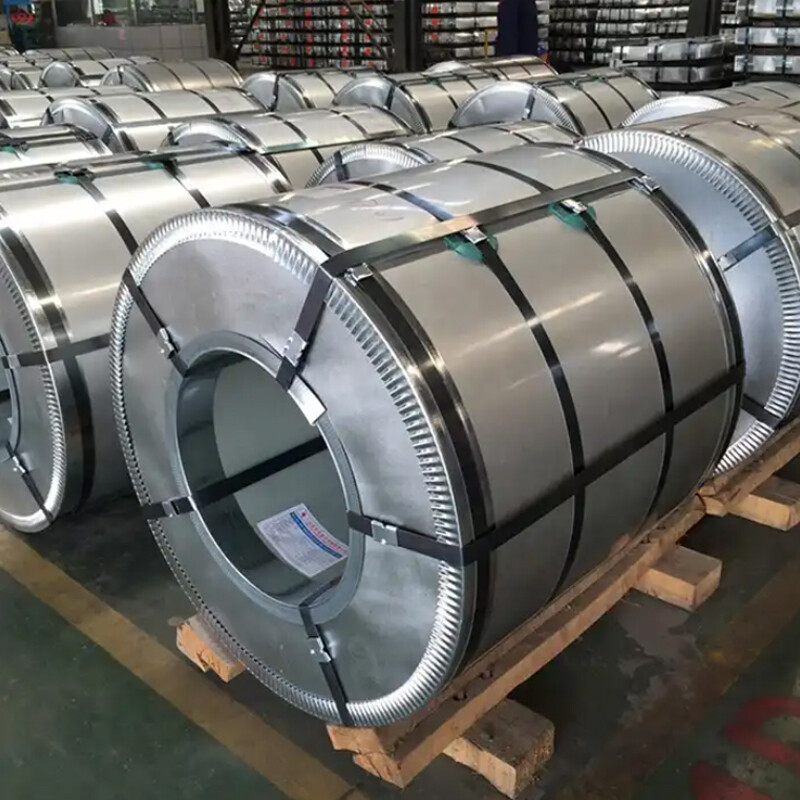

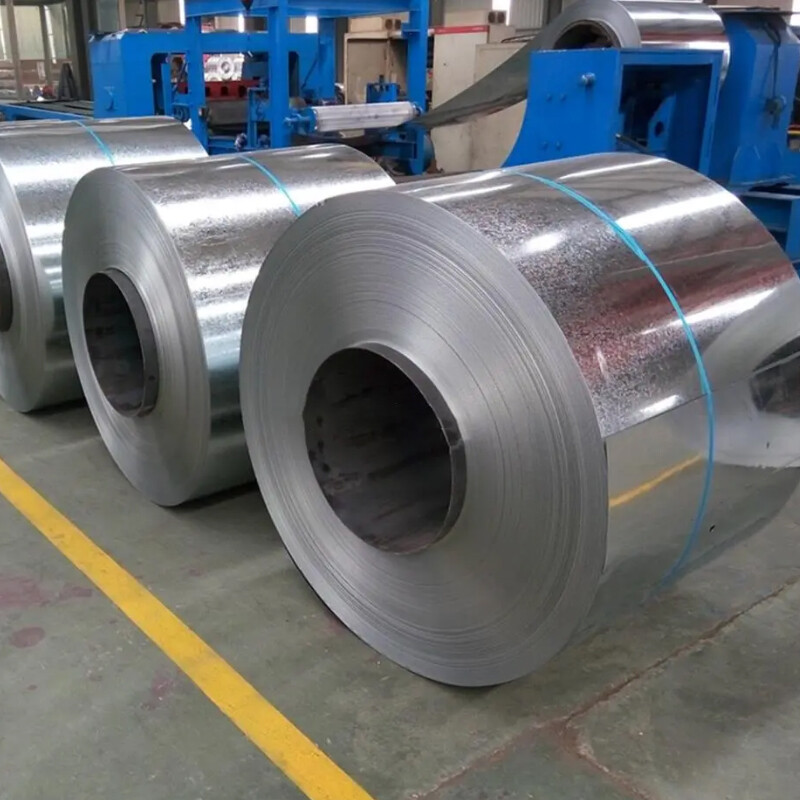

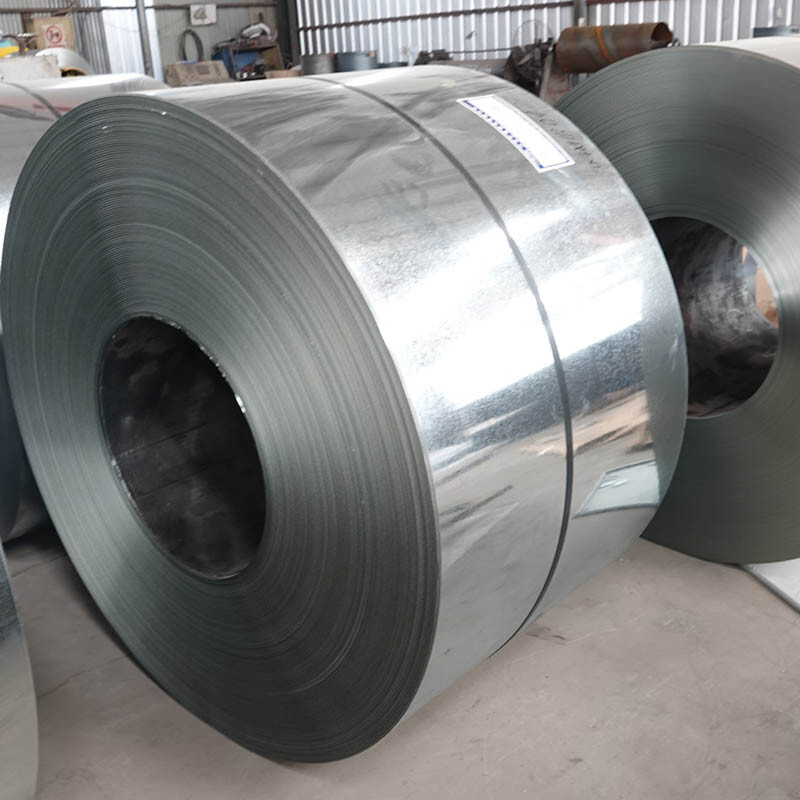

Galvanized coil

+8613020581687

+8613020581687

admin@bcjck.com

◉ Product Details

Galvanized steel coil is a kind of steel sheet material formed by galvanized steel strip, which is based on hot-rolled steel strip or cold-rolled steel strip. Its surface has a layer of zinc, this layer of zinc can effectively prevent rust and corrosion of the steel strip, thereby extending its service life.

Galvanized steel coil has a wide range of applications in industrial production and construction, such as building structures, electrical equipment, automobile manufacturing, petrochemical and other fields. Because there is a layer of zinc on its surface, it can effectively improve the corrosion resistance of the steel strip, so in some structures that need to be exposed to the natural environment for a long time, the use of galvanized steel coil can effectively reduce the frequency of maintenance and replacement, thereby reducing costs.

The manufacturing process of galvanized steel coil includes the following steps: First, the steel strip is cleaned and annealed to remove surface impurities and stresses; Then it is immersed in the molten zinc liquid to make its surface adhere to a layer of zinc; Finally, it is cooled and sheared. After these steps, the galvanized steel coil is manufactured.

In short, galvanized steel coil is a steel sheet material with excellent corrosion resistance, which has a wide range of applications in industrial production and construction.

Product Name	Galvanized Coil
Thickness	0.12mm-3.5mm
Width	600mm-1500mm
Length	508mm/610mm, Support Customization
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Zinc Layer	Hot Galvanizing: 60-275g/m²
Zinc Layer	Pre-galvanized: 80-275g/m²

Chemical Composition

Standard	Grade	C	Si	Mn	P	S	Ti
Forcold FormingChinese Standard	DX51D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX52D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX53D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX54D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX56D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX57D+Z	0.12	0.50	0.60	0.100	0.045	0.30
Forcold FormingJapanese Standard	SGCC	0.15	0.50	0.80	0.050	0.030	0.025
	SGCD1SGCD2	0.120.10	0.500.50	0.600.45	0.0400.030	0.0300.030	0.0250.025
	SGCD3	0.08	0.50	0.45	0.030	0.030	0.025
	SGCD4	0.06	0.50	0.45	0.030	0.030	0.025
For StructureJapanese Standard	SGC340	0.25	0.50	1.70	0.200	0.035	0.025
	SGC400SGC440	0.250.25	0.500.50	1.702.00	0.2000.200	0.0350.035	0.1500.150
	SGC490	0.30	0.50	2.00	0.200	0.035	0.025
	SGC510	0.30	0.50	2.50	0.200	0.035	0.025
For StructureAISI Standard	S220GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S250GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S280GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S320GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S350GD+Z	0.20	0.60	0.70	0.100	0.045	0.150
	S550GD+Z	0.20	0.60	0.70	0.100	0.045	0.150

Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-

Galvanized Surface Selection

Zero Spangle

Minimized Spangle

Normal Spangle

Large Spangle

Material introduction

Galvanized steel is a kind of steel after galvanized processing, which can effectively prevent steel corrosion and rust, thereby extending the service life of steel.

The coating of galvanized steel has strong toughness and can withstand mechanical damage during transportation and use. Galvanized steel is mainly used in the construction and manufacturing industry, because of its corrosion resistance, high strength, good durability, is widely used in a variety of building structures and mechanical equipment.

The coating of galvanized steel is usually divided into two kinds: electric galvanizing and hot-dip galvanizing, of which hot-dip galvanizing has a better anti-corrosion effect. Galvanized steel is often used in building external walls, glass curtain walls, marble curtain walls and other columns and stress materials, or used in outdoor telecommunications towers, highways and other open-air buildings.

Product application

Each batch of our products will be subjected to strict quality testing before leaving the warehouse, we can also accept your designated third party testing agency for quality inspection and quality certificate, to ensure that all products do not have quality problems and can be perfectly applied to various fields.
