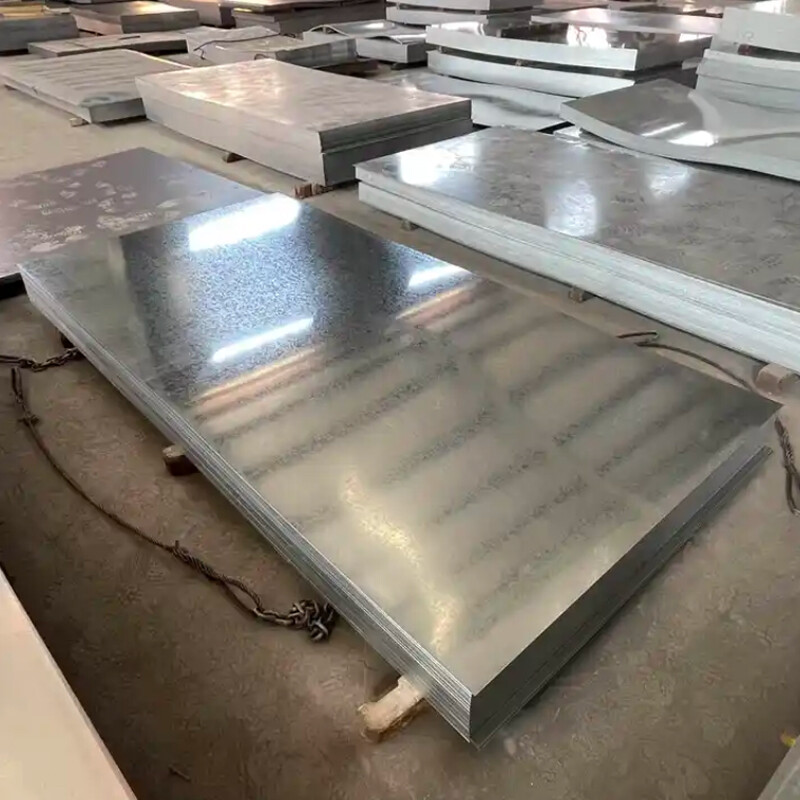

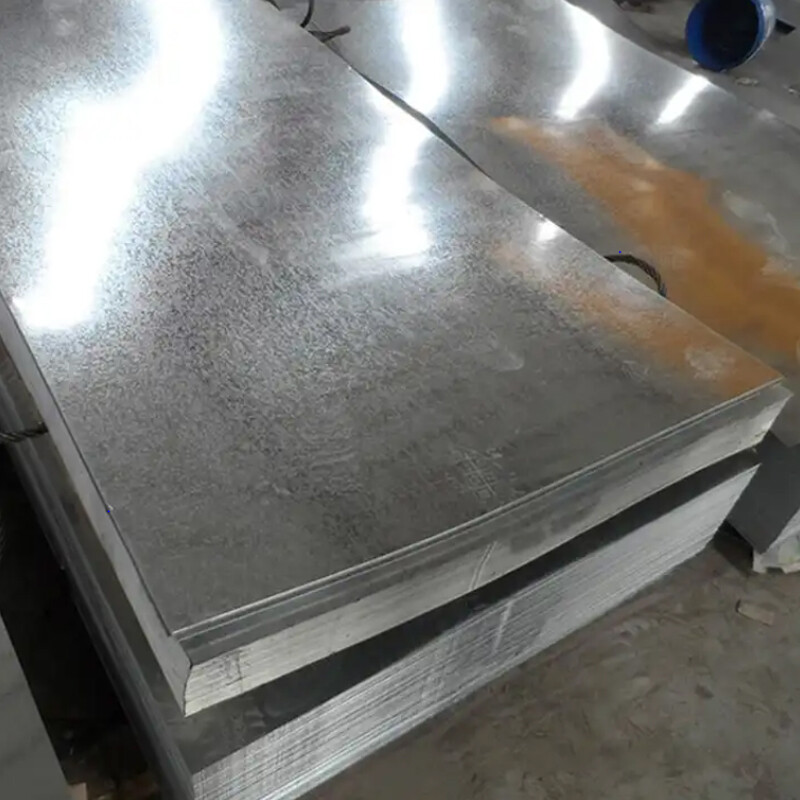

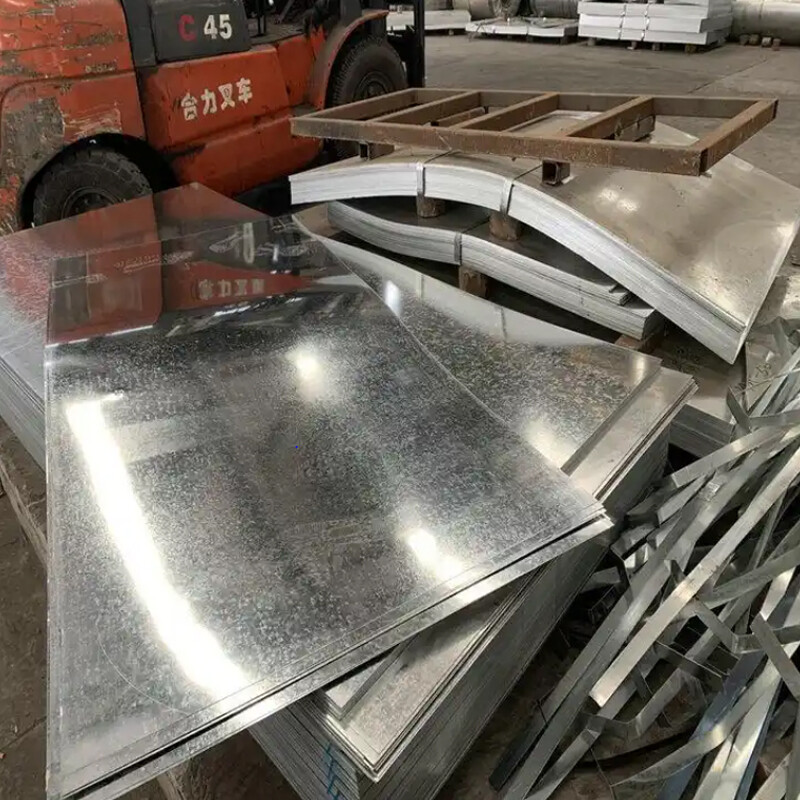

Galvanized plate

Galvanized steel plate is a welded steel plate with hot dip plating or electric galvanized layer on the surface, which is an economic and effective rust prevention method often used.

+8613020581687

+8613020581687

admin@bcjck.com

◉ Product Details

Galvanized steel plate is a welded steel plate with hot dip plating or electric galvanized layer on the surface, which is an economic and effective rust prevention method often used.

Galvanized steel plate is to prevent corrosion on the surface of the steel plate to extend its service life, coated with a layer of metal zinc on the surface of the steel plate, this zinc coated steel plate is called galvanized steel plate. Galvanizing is an economical and effective rust prevention method that is often used, and about half of the world's zinc production is used in this process. The coating of galvanized steel plate has strong toughness, and the galvanized layer forms a special metallurgical structure, which can withstand mechanical damage during transportation and use. Galvanized steel plate has good oxidation resistance. The surface oxidation resistance of galvanized steel plate is strong, which can strengthen the corrosion resistance and penetration ability of parts.

Product Name	Galvanized Sheet
Thickness	0.12mm-6.00mm
Width	600mm-1500mm
Length	1m-12m, Support Customization
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Zinc Layer	Hot Galvanizing: 60-275g/m²
Zinc Layer	Pre-galvanized: 80-275g/m²

Chemical Composition

Standard	Grade	C	Si	Mn	P	S	Ti
Forcold FormingChinese Standard	DX51D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX52D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX53D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX54D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX56D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX57D+Z	0.12	0.50	0.60	0.100	0.045	0.30
Forcold FormingJapanese Standard	SGCC	0.15	0.50	0.80	0.050	0.030	0.025
	SGCD1SGCD2	0.120.10	0.500.50	0.600.45	0.0400.030	0.0300.030	0.0250.025
	SGCD3	0.08	0.50	0.45	0.030	0.030	0.025
	SGCD4	0.06	0.50	0.45	0.030	0.030	0.025
For StructureJapanese Standard	SGC340	0.25	0.50	1.70	0.200	0.035	0.025
	SGC400SGC440	0.250.25	0.500.50	1.702.00	0.2000.200	0.0350.035	0.1500.150
	SGC490	0.30	0.50	2.00	0.200	0.035	0.025
	SGC510	0.30	0.50	2.50	0.200	0.035	0.025
For StructureAISI Standard	S220GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S250GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S280GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S320GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S350GD+Z	0.20	0.60	0.70	0.100	0.045	0.150
	S550GD+Z	0.20	0.60	0.70	0.100	0.045	0.150

Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-

Galvanized Surface Selection

Zero Spangle

Minimized Spangle

Normal Spangle

Large Spangle

Material introduction

Galvanized steel is a kind of steel after galvanized processing, which can effectively prevent steel corrosion and rust, thereby extending the service life of steel.

The coating of galvanized steel has strong toughness and can withstand mechanical damage during transportation and use. Galvanized steel is mainly used in the construction and manufacturing industry, because of its corrosion resistance, high strength, good durability, is widely used in a variety of building structures and mechanical equipment.

The coating of galvanized steel is usually divided into two kinds: electric galvanizing and hot-dip galvanizing, of which hot-dip galvanizing has a better anti-corrosion effect. Galvanized steel is often used in building external walls, glass curtain walls, marble curtain walls and other columns and stress materials, or used in outdoor telecommunications towers, highways and other open-air buildings.

Product application

Each batch of our products will be subjected to strict quality testing before leaving the warehouse, we can also accept your designated third party testing agency for quality inspection and quality certificate, to ensure that all products do not have quality problems and can be perfectly applied to various fields.
